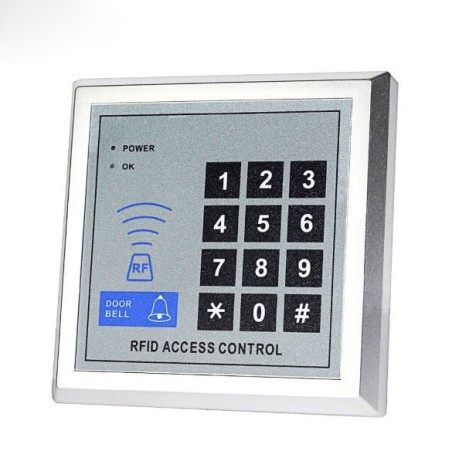

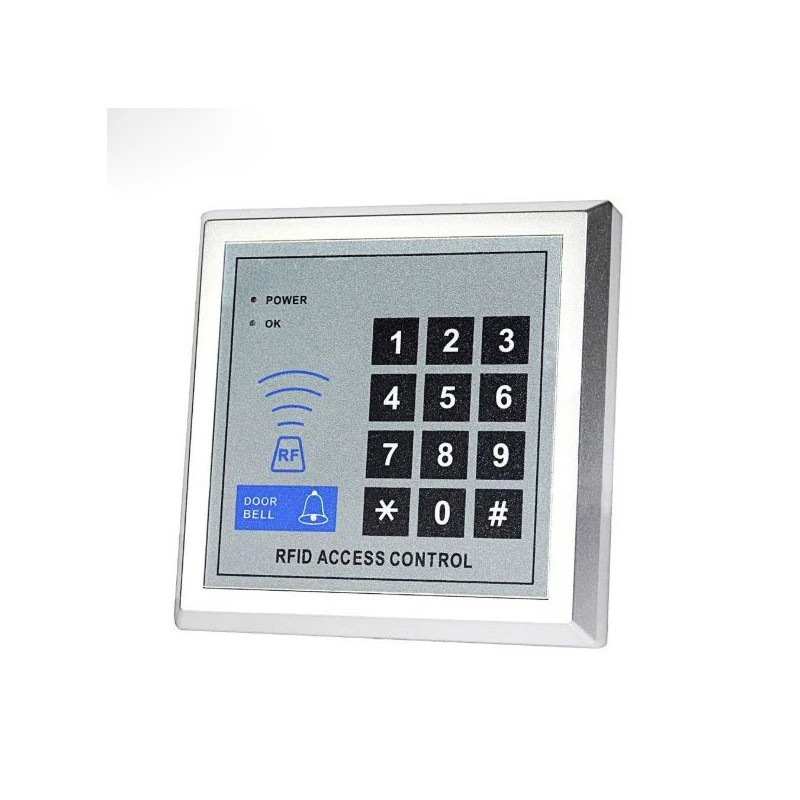

ID Card Access Control System with Password Function 04id

Product Description:

The ID Card Access Control System is a versatile security device designed for both residential and commercial use. This advanced system combines multiple access methods, including ID card reading and password entry, to provide robust security and convenient access control.

Key Features:

- Supports up to 1000 user entries

- Operating frequency: 125 KHz

- Card sensing technology

- Power consumption: 5W

- Operating temperature range: 0-50°C (32-122°F)

- Smart card recognition

Technical Specifications:

- Model: 04ID

- Brand: Asiali

- Input voltage: DC 12V

- Dimensions: 116 x 116 x 20 mm (4.57 x 4.57 x 0.79 inches)

- Material: Composite plastic

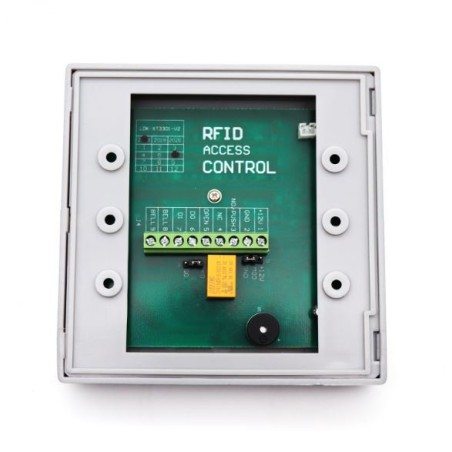

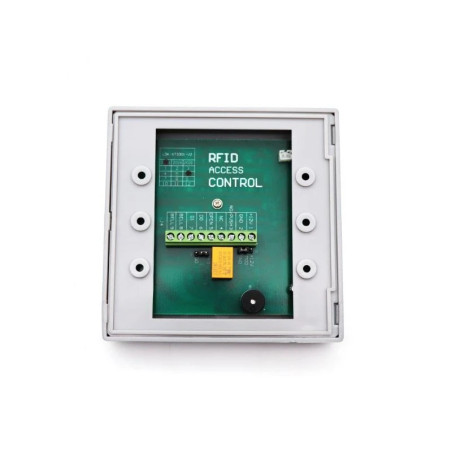

- Output connections: Compatible with various electric locks and switches

- Relative humidity: 40-90% RH (operating)

This versatile access control system is ideal for securing entrances to homes, offices, and other facilities. It offers the flexibility of both card swipe and password entry methods, eliminating the need for traditional keys. The device can be easily integrated with existing door locks and security systems.

The ID Card Access Control System is designed for global markets, with a focus on regions including Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, and the Middle East. It's available through major e-commerce platforms such as eBay, Amazon, Wish, AliExpress, and LAZADA, as well as independent online stores.

With its user-friendly interface and robust security features, this access control system provides peace of mind for property owners and managers. Whether you're looking to enhance home security or implement access control in a business setting, this device offers a reliable and efficient solution.

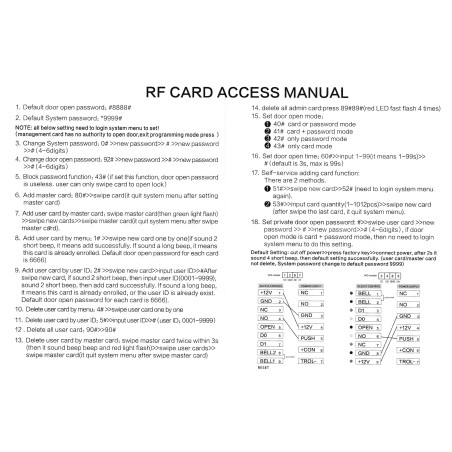

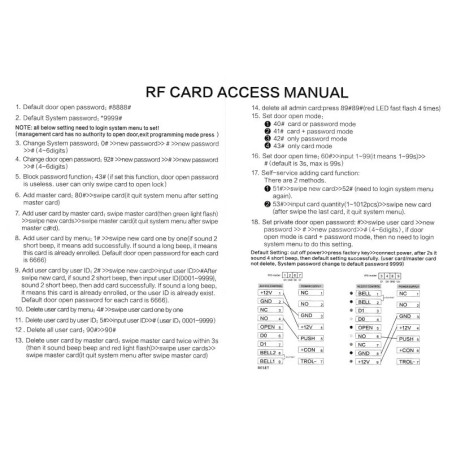

1. Open the door password: #88888# (open the door password)

2. Programming code: "9999# (programming code)

Note: the following settings are to enter the management programming

3. Modify programming password: 0# new password # now password # (4-6 any number)

4. Modify open password: 92# new password # new password (4-6 Random Mathematics)

5. Masking passwords: 91#91# (the default password to open, this password is only used in the cipher mode, two inconsistent password, long ring sound, automatically jump back to programming the main menu)

6. Increase the management card: 80# brush management card automatically exit the program

7. Mother card: brush a management card 1.5 seconds back light flash quickly to increase the user card brush and then brush a management card to exit

8. Fast: Yucca 1# continuous to increase the user card brush (after every brush card if you hear drops twice, said this card has increased success, if you hear a loud sound said this card, then brush a card can be, each card with the default password for #888884 this password can only used in Calgary passwords mode)

9. Encoding: 2# brush user card input 6 digit number Every brush card if hear the drops twice, said this card has increased success, if you hear a loud sound said this card, then brush a can, each card with the default password is (8888), the password can be used only in card encryption mode. User ID (000001-9999999) 6 digits, cannot be repeated, enter the number if you hear a loud sound, said this number already exists, or less than 6 digit, please input again, until I heard the drops can be twice

10. Fast delete card: 4# continuous brush to remove the used

11. Encoding delete card: 5# card code # (input 10 or 6 digit encoding)

12. All delete card: 90#90# clear all user card

13. Mother card delete card: 3 seconds to quickly brush two times after the mother card fast label flash to delete the user card / brush again a management card to exit

14 set the way to open the door:

  1.   40# card or password to open the door

  2.   41# card and the password to open the door

  3.   42# password to open the door (blocking the opening of the card)

15. Set the opening delay: 60# (000-254 seconds) (3 seconds) (254 for the maximum value, the relay opens the way for the trigger, credit card open, swipe off)

16.  Automatic on duty on and off:

  1.   51# (an automatic induction open Yucca)

  2.   52# off

  3.   53# number (001-999) to achieve the number of automatic shutdown

17. Modify pin:# door brush card (8888 or 4-6 old password) new password # new password # (4-6 random numbers) in Calgary passwords Mode, no need to enter the programming mode

Note:

to restore the factory after the power on the short circuit pin reenergized after two seconds to hear two drops user / management card/change

Product (125/250/300/375/500/AC/AID frequency) (1K-8K-16K user)

Remarks:

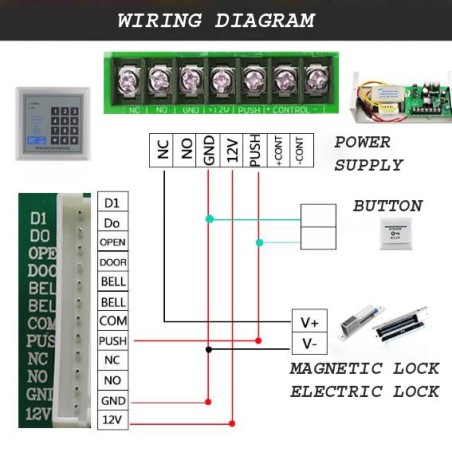

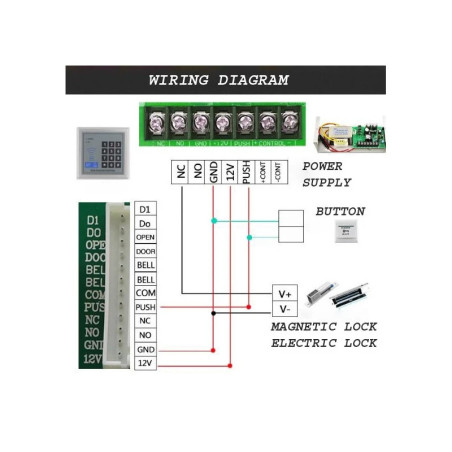

with access control wing diagram

1. In the instillation of wing, please turn off the power, do not live operation!

2. Under normal circumstances is connected with a lock from the power controller
